Intelligent threading machine
International standards ISO 9001:2000 Certification
German technology
Invention patents, leading technology
Intelligent control, saving time and effort
Intelligent recognition of pipe diameter size
High-strength body, durable and resistant

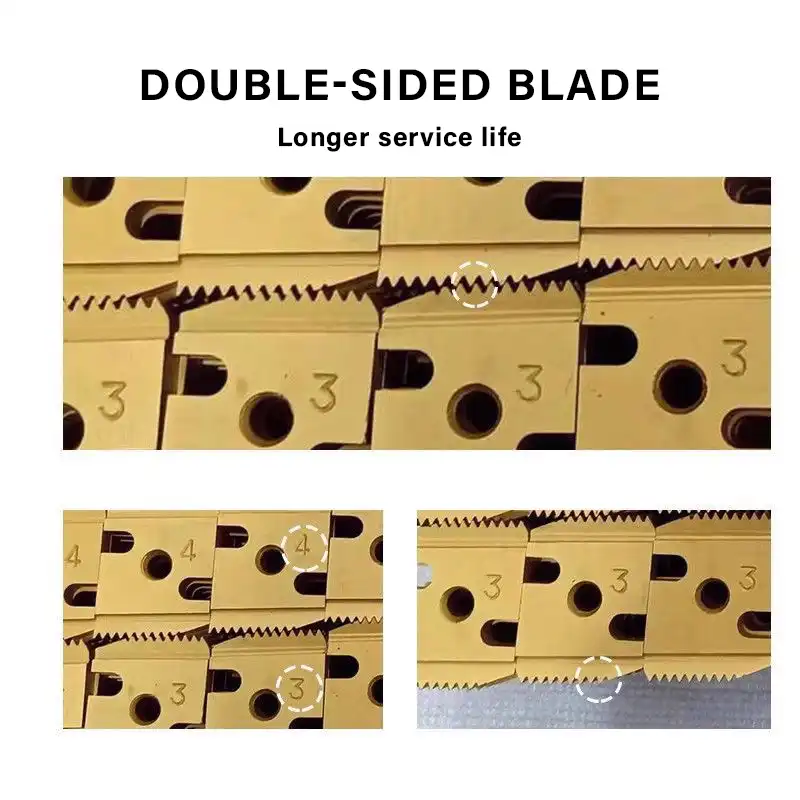

High precision cutting tools
Quickly thread the pipe
Easy to operate, easy to learn and understand
12-15 thread ends can be processed per minute
Can save a lot of labor costs and economic costs

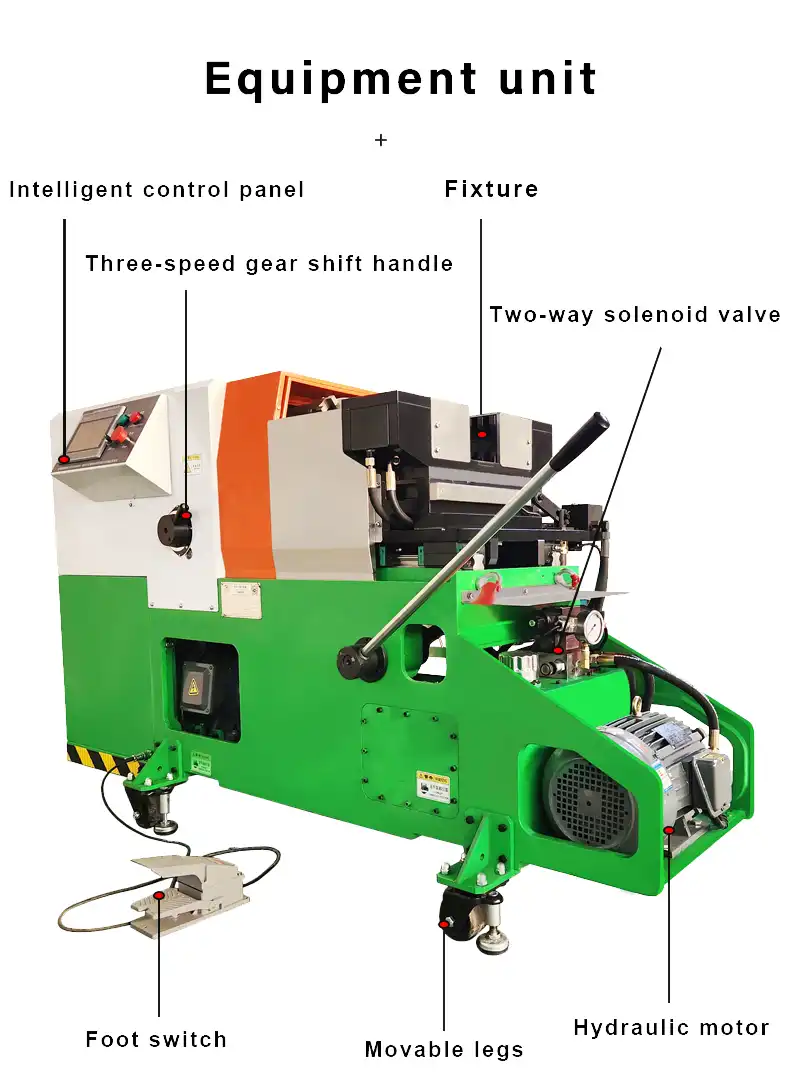

Introduction

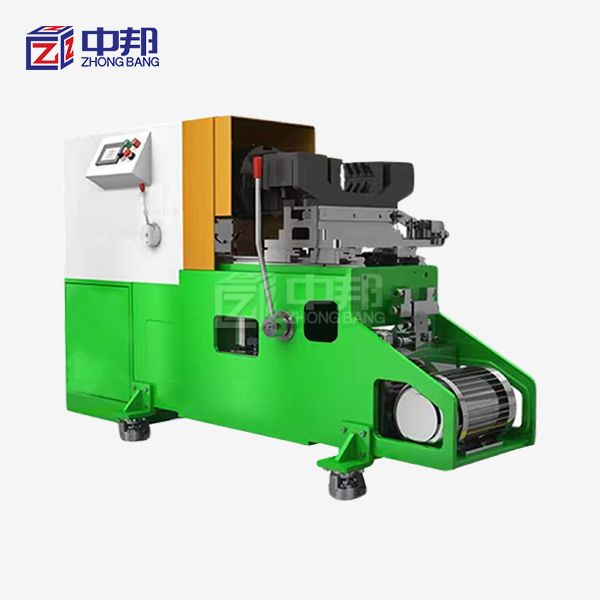

The Intelligent Threading Machine, a flagship product of Hangzhou Yasda Trading Co., Ltd, represents the pinnacle of pipe threading technology. This machine is not just a tool; it's an embodiment of innovation, designed to simplify the pipe threading process through intelligence, efficiency, and precision. As the name suggests, the standard version is the benchmark against which all other threading machines are measured, offering a perfect blend of performance and reliability.
Hangzhou Astar Trading Co., Ltd sincerely provides you with the following services:
Advantage
Intelligent recognition of pipe diameter size
intelligent automatic tool adjustment, and tool alignment
Can process 12-15 threaded threads per minute
Expertise: Decades of experience in the development and manufacturing of intelligent pipe machinery.
Quality Assurance: A commitment to producing high-quality, reliable threading machines.
Customization: The ability to create customized solutions to meet specific industry needs.
Reliability: Known for manufacturing products that offer consistent performance and longevity.
Customer Service: Providing exceptional service and support throughout the customer journey.
Product Model
Our products have four models, the parameters are as follows：
XNB-ZNT-65A
| Specification | Details |
|---|---|
| Total Motor Power | 9.3KW |
| Voltage | 380V (Three-phase, five-wire system) |
| Working Range | 1”-2.5”(25.4mm-63.5mm) |
| Speed | 48/87/147 r/min |
| Dimensions | 1.80×0.6×1.2 (M) |
| Weight | 850KG |
| Maximum Clamping Force | 110KG |
XNB-ZNT-65B
| Specification | Details |
|---|---|
| Total Motor Power | 9.3KW |
| Voltage | 380V (Three-phase, five-wire system) |
| Working Range | 1/2”-2.5”(12.7mm-63.5mm) |
| Speed | 48/87/147 r/min |
| Dimensions | 1.80×0.6×1.2 (M) |
| Weight | 850KG |
| Maximum Clamping Force | 110KG |
XNB-ZNTG-80
| Specification | Details |
|---|---|
| Total Motor Power | 9.3KW |
| Voltage | 380V (Three-phase, five-wire system) |
| Working Range | 1/2”-3”(12.7mm-76.2mm) |
| Speed | 48/87/147 r/min |
| Dimensions | 1.80×0.6×1.2 (M) |
| Weight | 850KG |
| Maximum Clamping Force | 110KG |
XNB-ZNTG-100
| Specification | Details |
|---|---|
| Total Motor Power | 9.3KW |
| Voltage | 380V (Three-phase, five-wire system) |
| Working Range | 1/2”-4”(12.7mm-101.6mm) |
| Speed | 48/87/147 r/min |
| Dimensions | 1.80×0.6×1.2 (M) |
| Weight | 850KG |
| Maximum Clamping Force | 110KG |
Working Principle
AI Chip Integration: The Intelligent Threading Machine utilizes an AI chip that enables intelligent control and operation.
Automatic Tool Adjustment: It features automatic adjustment of tools for precise threading without manual intervention.
High-Precision Threading: Utilizes high-precision cutting tools for accurate threading, ensuring quality and consistency.

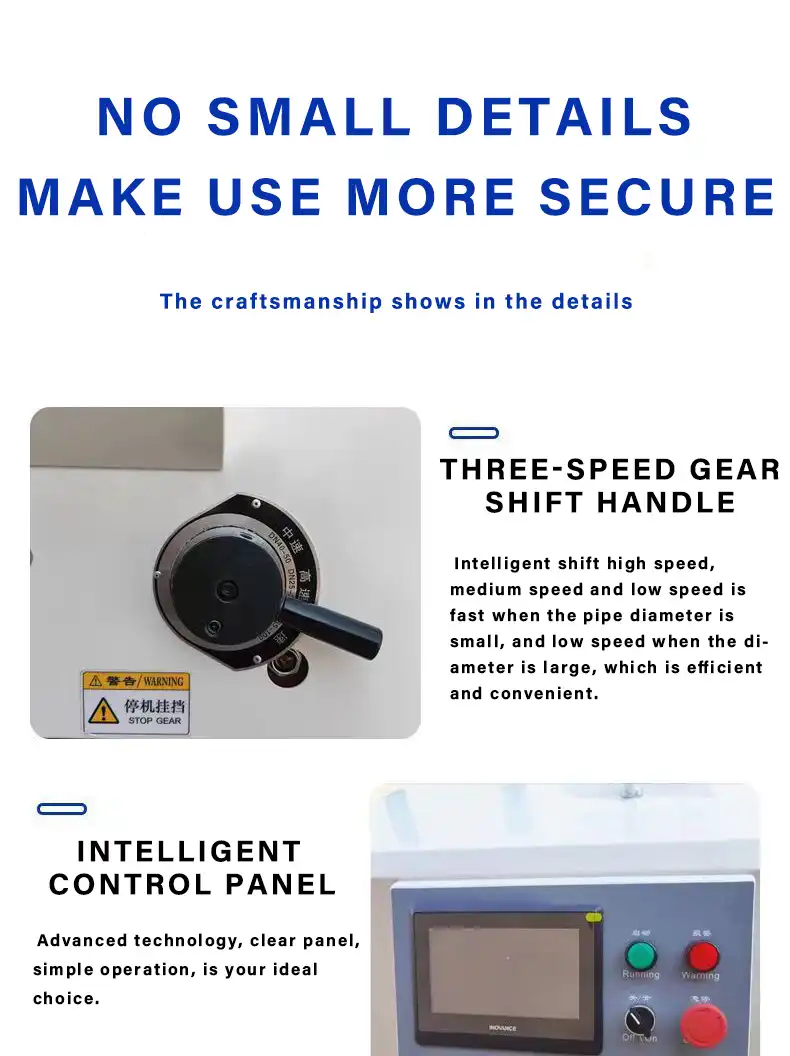

User Interface: An intuitive touch screen allows for easy setup and control of threading parameters.
Features
Intelligent Adjustment: The machine intelligently adjusts to various threading requirements, ensuring optimal performance.
Electric Screws for Labor Efficiency: Reduces the need for manual labor, significantly increasing productivity.
Improving Efficiency: Capable of processing 12-15 threads per minute, enhancing overall efficiency.
Reasonable Layout: Designed with a user-friendly layout that ensures safe and reliable operation.
Adjustable Torque: Offers adjustable torque settings to accommodate different threading needs.
Automatic Return to Original Position: Equipped with an automatic return function for precision and safety.
Quality Control and Safety Standards
ISO 9001:2000 Certification: Ensuring the highest quality management system standards.
Safety Features: Incorporates multiple safety features to protect operators.
Durable Construction: Built with high-quality materials for long-lasting use.
Compliance with International Standards: Meets or exceeds international threading and machining standards.
Continuous Improvement: Constantly refining processes and Intelligent threading machine based on feedback and new technologies.

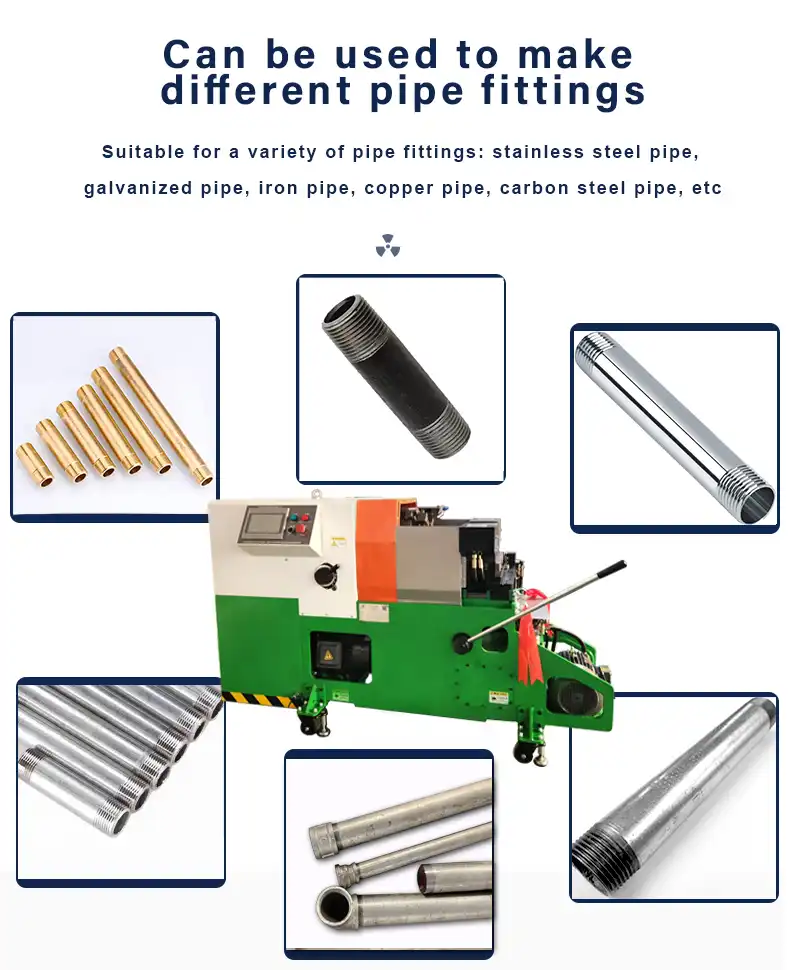

Application Scenarios
Construction: Ideal for on-site pipe threading tasks, improving the speed and quality of installations.
Gas Industry: Suited for gas distribution networks, ensuring precision and safety in pipe connections.
Petroleum: Designed for oil field operations where durable and reliable pipe connections are crucial.
Chemical Industry: Provides precise threading for chemical plant pipelines, minimizing the risk of leaks.
Agriculture: Efficient for irrigation systems, ensuring durable and leak-free connections.
Shipbuilding: Utilized in ship pipe systems for high-quality and reliable threading.
Logistics and Packaging

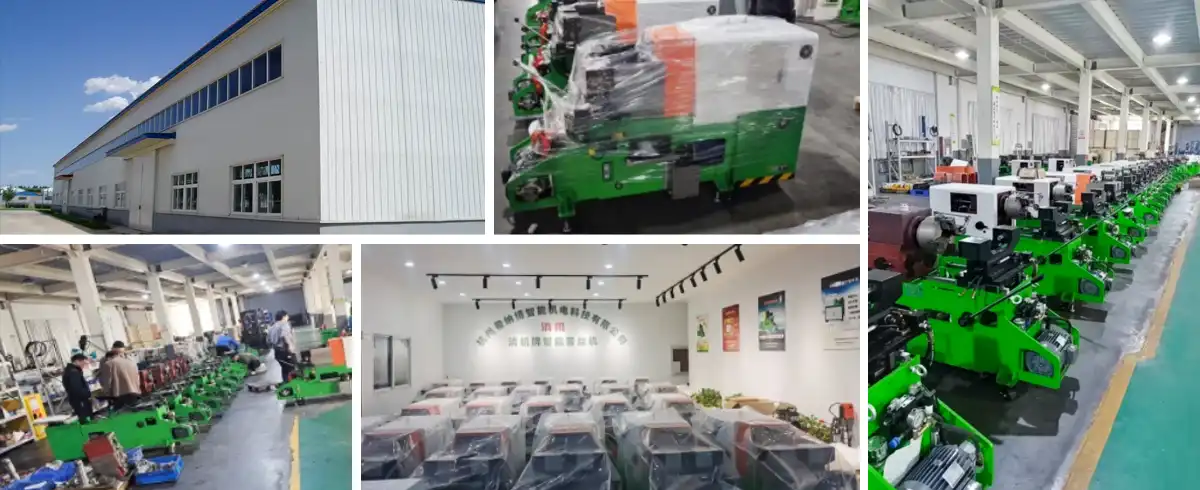

Our factory
Contact us
Hangzhou Yasda Trading Co., Ltd is a professional production supplier with extensive experience in producing Intelligent Threading Machine . We independently develop products, manufacture and sell them, and provide bulk orders and customized services. If you are in the market for an Intelligent Threading Machine, please contact us at ysdthreadingmachine@gmail.com to discuss how our innovative solutions can enhance your pipe threading operations.
